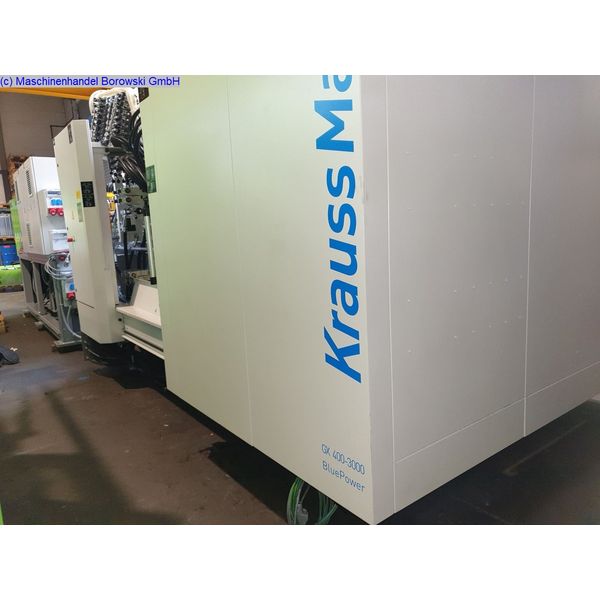

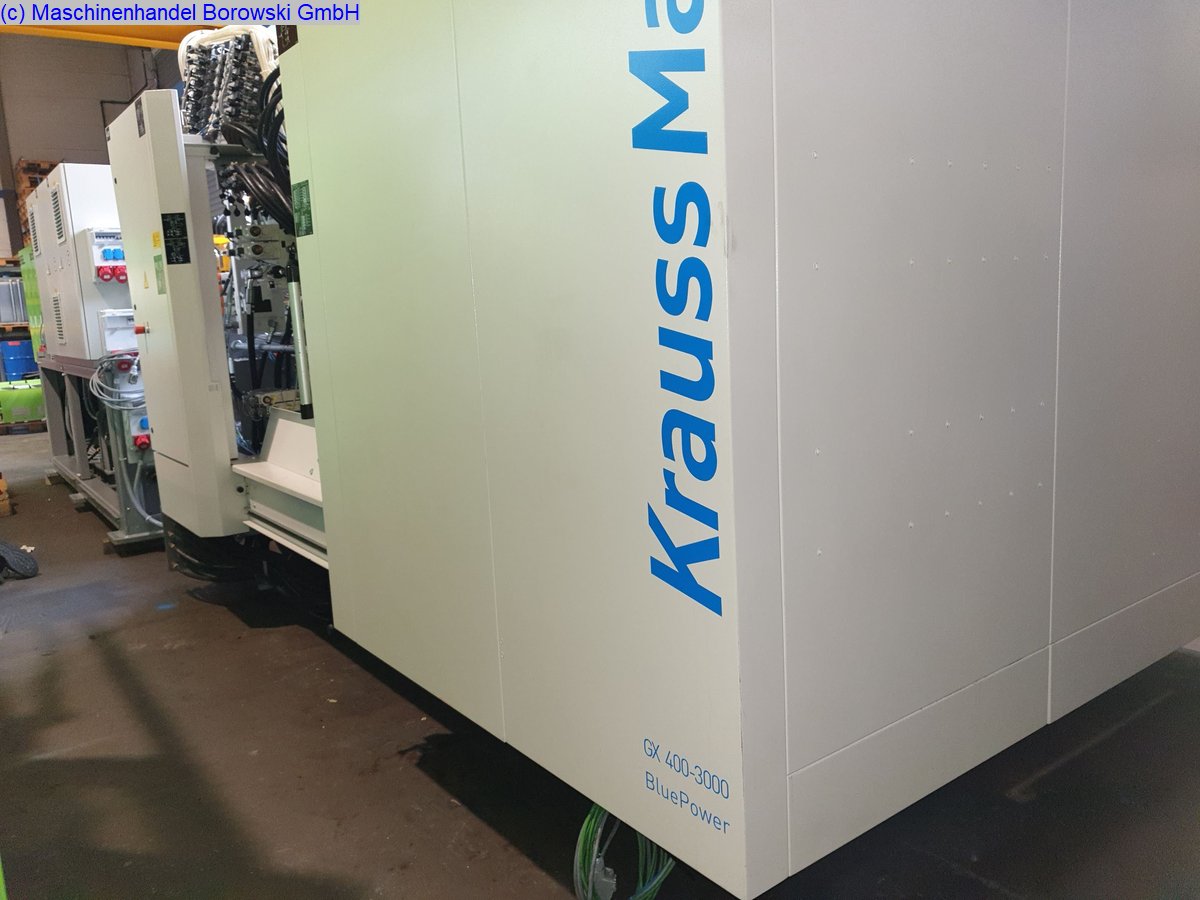

used injection moulding machine KRAUSS MAFFEI KM 400-3000 GX - Blue Power

We sell this used injection molding machine Krauss Maffei KM 400-3000 GX MC5 with only approx. 100 operating hours. The start-up and the inspection were successfully completed in Langenfeld. You are welcome to inspect the second-hand injection moulding machine during dry-cycle run in our company.

KM 400 GX - excellent two-platen technology

The GuideX guide shoe absorbs forces and reduces wear on the guides.

The GearX high-performance clamping unit system works quickly and reliably.

The interaction of these two technologies with the stable design ensures absolute platen parallelism with high force absorption.

The "Blue Power" optimized clamping block can build up the clamping force of 4000 kN quickly and energy-efficiently. The four pressure pads behind the fixed platen are specially designed for high continuous operation. The cast-optimized plates are the prerequisite for maximum moulded part quality and also offer long-term protection of the tools.

KM SP 3000 - proven plasticizing system

Krauss Maffei offers the highest level of accuracy and excellent process stability with the SP 3000 injection unit and the installed screw diameter of 80 mm. The inline injection unit (rotary piston version) generates the force centrally via the injection piston, which is transmitted to the screw. Pressure and speed are regulated very precisely with the. The syringe control thus enables constant stability during the entire process for the shot weight constancy.

Additional advantages:

- MC6 control user-friendly

- Quick changeover and maintenance thanks to good accessibility

- energy-efficient servo drive (Servo Drive Technology)
