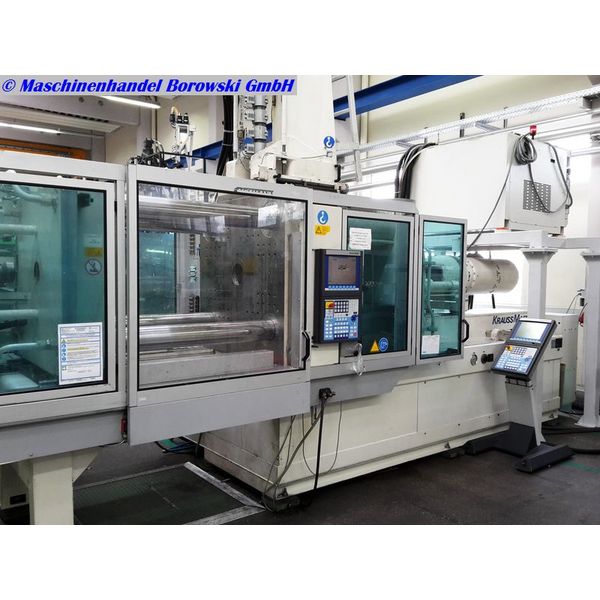

used injection moulding machine KRAUSS MAFFEI KM 300-720 C2 MC5

warehouse no.:	502195
manufacturer:	KRAUSS MAFFEI
type:	KM 300-750 C2 MC5
controller:
year of construction:	2007
operation hours:	19646 h

This for sale injection molding machine from Krauss Maffei of Multinject series can be used by request as a multi-component machine. For that this machine can be equipped with a second independent injection unit, for injecting into the horizontal plane of separation (SP 380, screw diameter 35 mm, injection volume 140 ccm, injection pressure 2429 bar). The higher price is 13,000.00 EUR for this unit.

By the second injection unit there is improved moldings functionality and greater design freedom. In this multi-component technology are two plastics injected during one injection molding process to multifunctional components. In this case, color effects and different material properties could be reached.

technical data clamping unit

clamping force:	3000	kN
distance between tie-bars h x v:	710 x 630	mm
size of mould plates h x v:	1060 x 1050	mm
min. mould height:	330	mm
max. open daylight:	1150	mm
opening stroke:	820	mm
ejector stroke:	195	mm
ejector force:	58	kN
centering diameter of moving platen:	150	mm
centering diameter of fixed platen:	150	mm
weight of mould:	3430	kg

technical data injection unit

screw diameter:	45	mm
swept volume:	318	ccm
injection pressure:	2336	bar
screw length:	22	l/d
screw speed:	265	min
plasticising rate:	29	g/s PS
injection rate into the open:	143	g/s PS
number of heating zones:	5
nozzle stroke:	390	mm
