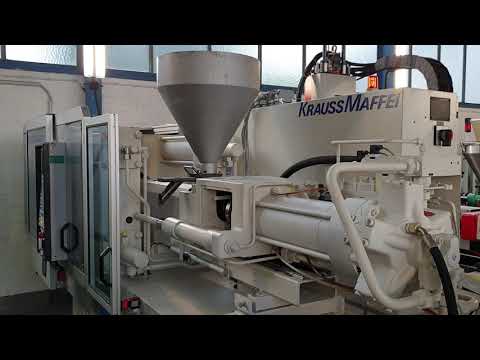

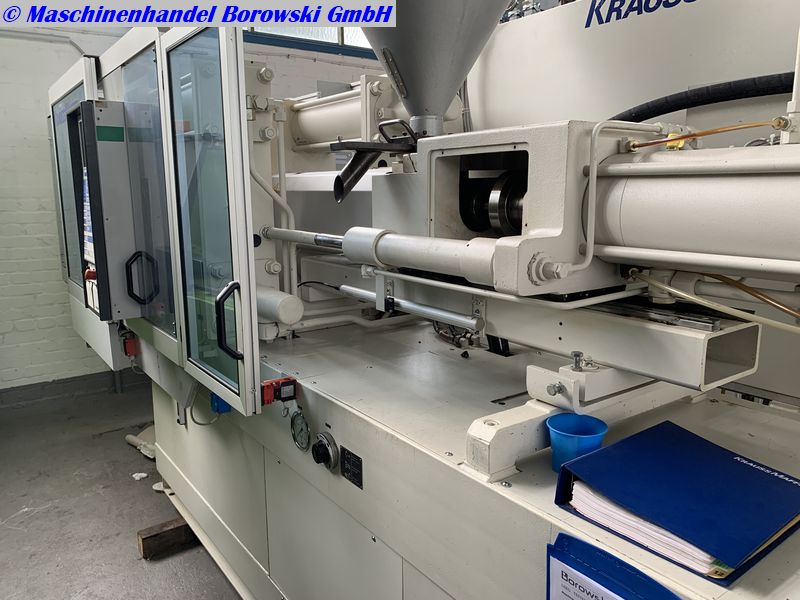

used injection moulding machine KRAUSS MAFFEI KM 150-700 C1
| warehouse no.: | 502732 |
| manufacturer: | KRAUSS MAFFEI |
| type: | KM 150-700 C1 |
| controller: | MC 4 |
| year of construction: | 2003 |
| operation hours: | 64496 h |
We offer you this used injection molding machine from Krauss Maffei including a technical inspection and repair.
With only approx. 60,000 operating hours, it can still do a lot in your production.

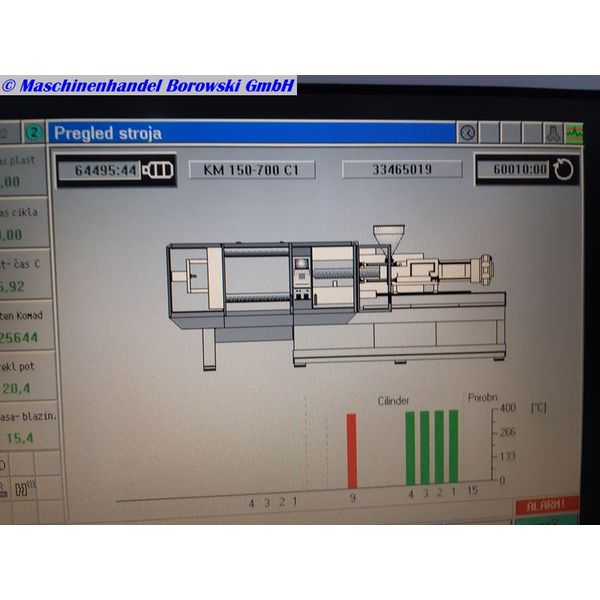

The closing force can be set via the display of the MC4 control and the closing and opening speed can be displayed on the screen. The plasticizing unit 700 has a 50 mm screw cylinder installed, which allows a calculated stroke volume of 377 cm³ per injection process. The maximum injection pressure is 1892 bar. After the functional test has been completed, the machine can be inspected under drycycle conditions.
Please arrange an appointment with us.
We are already looking forward to your visit.
The closing force can be set via the display of the MC4 control and the closing and opening speed can be displayed on the screen. The plasticizing unit 700 has a 50 mm screw cylinder installed, which allows a calculated stroke volume of 377 cm³ per injection process. The maximum injection pressure is 1892 bar. After the functional test has been completed, the machine can be inspected under drycycle conditions.
Please arrange an appointment with us.
We are already looking forward to your visit.
technical data clamping unit
| clamping force: | 1500 | kN |
| distance between tie-bars h x v: | 500 x 500 | mm |
| size of mould plates h x v: | 790 x 780 | mm |
| min. mould height: | 300 | mm |
| max. mould height: | 600 | mm |
| max. open daylight: | 900 | mm |
| opening stroke: | 650 | mm |
| ejector stroke: | 150 | mm |
| ejector force: | 22 | kN |
| weight of mould: | 1650 | kg |
technical data injection unit
| screw diameter: | 50 | mm |
| swept volume: | 377 | ccm |
| injection pressure: | 1892 | bar |
| screw speed: | 255 | min |
| plasticising rate: | 34 | g/s PS |
| injection rate into the open: | 181 | g/s PS |
| number of heating zones: | 5 |
measures & weight
| measures of machine l x w x h: | 4.7m x 1.51m x 2.1m | |
| total weight: | 7100KG | |
equipment included
