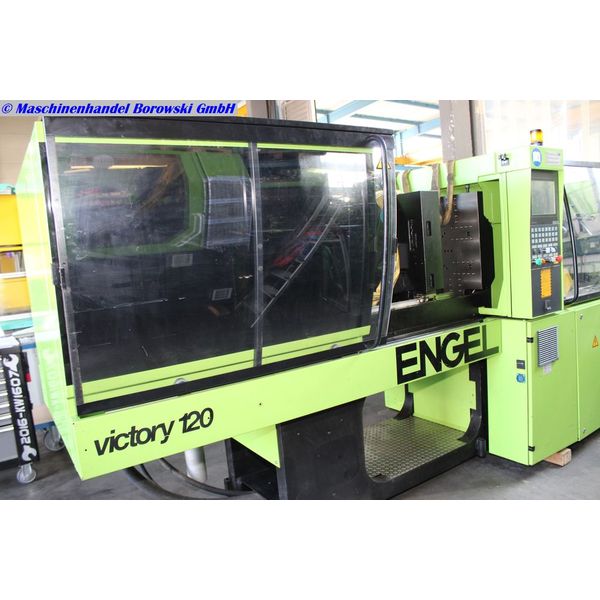

used injection moulding machine ENGEL Victory 650-120 Tech
| warehouse no.: | 502718 |
| manufacturer: | ENGEL |
| type: | Victory 650-120 Tech |
| controller: | EC200 A01 |
| year of construction: | 2007 |
| operation hours: | 40710 h |
This ENGEL product, injection molding machine VICTORY 650-120 Tech, was produced under the strictest quality controls. The ENGEL Service has successfully checked the functions in our technical center and thus the service life is still well maintained.
The injection molding series ENGEL VICTORY can be used flexibly, reliably and can produce wide range of technical parts in an energy-efficient manner. Due to the tie-bar technology, a relatively large moulds can be used on a comparatively small injection molding machine.
The machine offer very good mould protection thanks to the patented ENGEL technology for platen parallelism and even clamping force distribution.

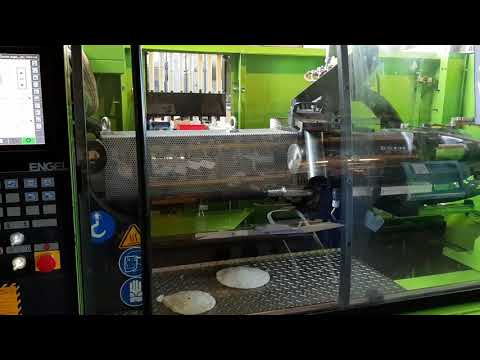

We invite you to visit our checked, shortly available injection molding machine during dry-cycle test run.
The injection molding series ENGEL VICTORY can be used flexibly, reliably and can produce wide range of technical parts in an energy-efficient manner. Due to the tie-bar technology, a relatively large moulds can be used on a comparatively small injection molding machine.
The machine offer very good mould protection thanks to the patented ENGEL technology for platen parallelism and even clamping force distribution.
We invite you to visit our checked, shortly available injection molding machine during dry-cycle test run.
technical data clamping unit
| clamping force: | 1200 | kN |
| size of mould plates h x v: | 740 x 680 | mm |
| min. mould height: | 300 | mm |
| max. open daylight: | 800 | mm |
| opening stroke: | 500 | mm |
| ejector stroke: | 200 | mm |
| ejector force: | 40 | kN |
| centering diameter of moving platen: | 175 | mm |
| centering diameter of fixed platen: | 125 | mm |
| weight of mould: | 825 | kg |
technical data injection unit
| screw diameter: | 50 | mm |
| swept volume: | 393 | ccm |
| injection pressure: | 1232 | bar |
| screw length: | 20 | l/d |
| screw stroke: | 200 | mm |
| screw speed: | 290 | min |
| injection rate into the open: | 220 | g/s PS |
| number of heating zones: | 5 | |
| nozzle stroke: | 300 | mm |
measures & weight
| measures of machine l x w x h: | 5m x 1.65m x 2.1m | |
| total weight: | 7600KG | |
equipment included
