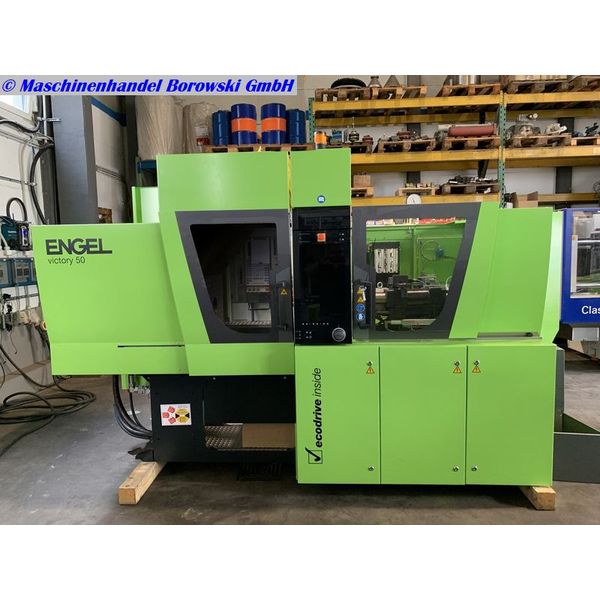

used injection moulding machine ENGEL Victory 200-50 fast track
| warehouse no.: | 502751 |
| manufacturer: | ENGEL |
| type: | Victory 200-50 fast track |
| controller: | CC300 |
| year of construction: | 2018 |
| operation hours: | 2000 h |
 perfect for closure production
 simple and very fast mould changing thanks to tie-bar-less technology
 optimal utilisation of the platen dimensions
 constant part quality thanks to the patented ENGEL force divider
 particularly energy-efficient thanks to the ENGEL ecodrive
technical data clamping unit
| clamping force: | 500 | kN |
| size of mould plates h x v: | 500 x 450 | mm |
| min. mould height: | 200 | mm |
| max. open daylight: | 600 | mm |
| opening stroke: | 400 | mm |
| ejector stroke: | 100 | mm |
| ejector force: | 40 | kN |
| centering diameter of moving platen: | 125 | mm |
| centering diameter of fixed platen: | 125 | mm |
| weight of mould: | 600 | kg |
technical data injection unit
| screw diameter: | 25 | mm |
| swept volume: | 69 | ccm |
| injection pressure: | 2090 | bar |
| screw length: | 25 | l/d |
| screw stroke: | 140 | mm |
| screw speed: | 480 | min |
| plasticising rate: | 12 | g/s PS |
| injection rate into the open: | 104 | g/s PS |
| number of heating zones: | 4 | |
| nozzle stroke: | 230 | mm |
measures & weight
| measures of machine l x w x h: | 3.4m x 1.3m x 1.8m | |
| total weight: | 2900KG | |
