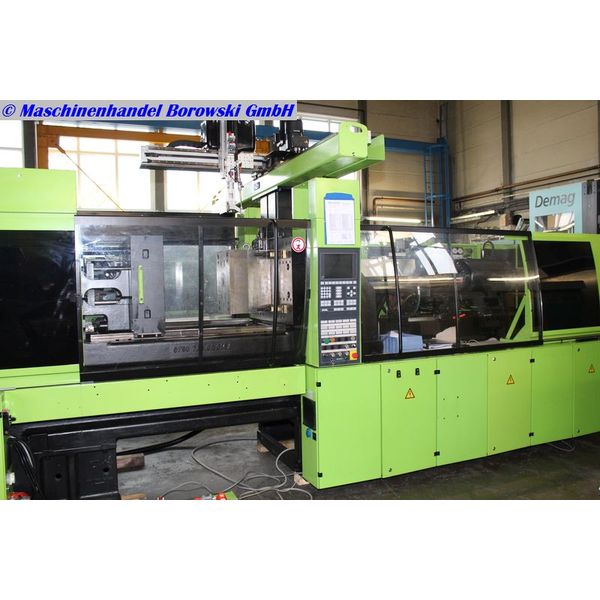

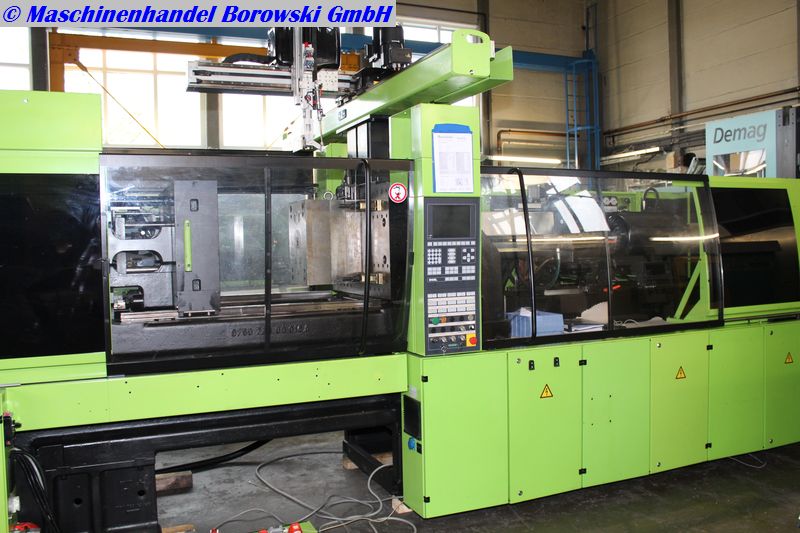

used injection moulding machine ENGEL ES 1350-250 HL-V
| warehouse no.: | 502313 |
| manufacturer: | ENGEL |
| type: | ES 1350-250 HL-V |
| controller: | EC 100 |
| year of construction: | 2001 |
| operation hours: | 57295 h |
By the design-related bending moment of the C-frame results in a minimal oblique position of the mold clamping plates. Due to the swivel joint used in the HL clamping unit and the vertically movable plate, this can follow any change in the position of the fixed plate. In the case of the closing force structure, the movable plate is lifted off the rail guide. This means that no lateral forces can build up in the tool. This results in an absolutely parallel clamping unit system even under workload.
technical data clamping unit
| clamping force: | 2500 | kN |
| size of mould plates h x v: | 1050 x 650 | mm |
| min. mould height: | 350 | mm |
| max. open daylight: | 1200 | mm |
| opening stroke: | 850 | mm |
| ejector stroke: | 200 | mm |
| ejector force: | 82 | kN |
| centering diameter of moving platen: | 160 | mm |
| centering diameter of fixed platen: | 160 | mm |
technical data injection unit
| screw diameter: | 60 | mm |
| swept volume: | 735 | ccm |
| injection pressure: | 1480 | bar |
| screw length: | 20 | l/d |
| screw stroke: | 260 | mm |
| screw speed: | 226 | min |
| plasticising rate: | 45 | g/s PS |
| injection rate into the open: | 267 | g/s PS |
| number of heating zones: | 5 | |
| nozzle stroke: | 500 | mm |
measures & weight
| measures of machine l x w x h: | 6.92m x 1.99m x 2.46m | |
| total weight: | 20000KG | |
equipment included
technical data robot-system
| handling type: | Linear Handling | |
| manufacture: | ENGEL | |
| controller: | ERC 23/1-EA | |
| year of construction: | 2001 | |
| handling weight: | 10 | kg |
| X axis: | 500 | mm |
| Y axis: | 1000 | mm |
| Z axis: | 2360 | mm |
| A axis rotation: | 270 | ° |
