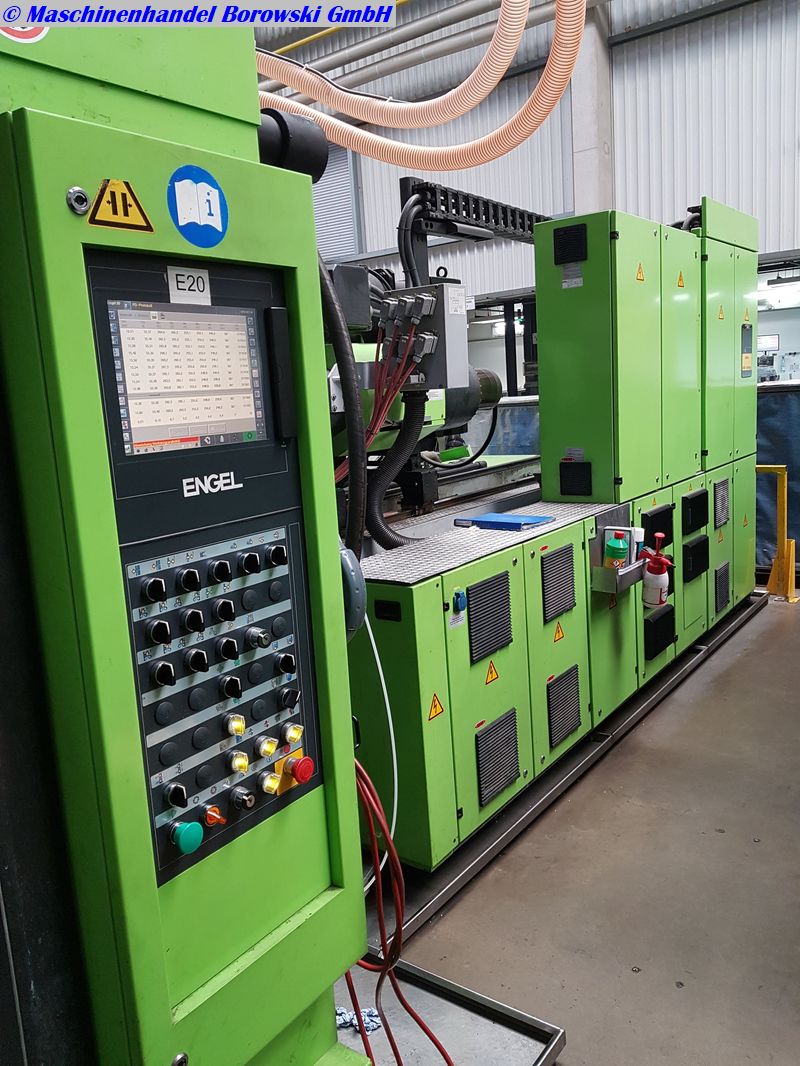

used injection moulding machine ENGEL DUO 2550-700 WP
| warehouse no.: | 502557 |
| manufacturer: | ENGEL |
| type: | DUO 2550-700 WP |

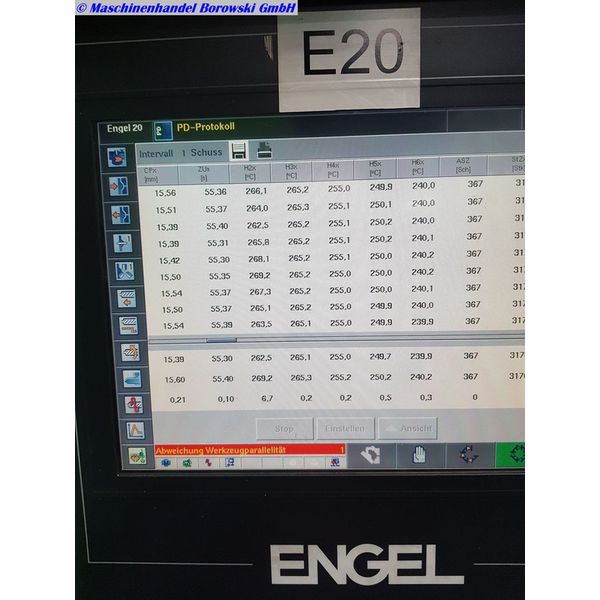

| controller: | CC 200 A01 |
| year of construction: | 2007 |
| operation hours: | 54282 h |
Engel DUO large-machine with 2-plate clamping unit, directly available from our warehouse in Langenfeld, Germany .
The machine was checked in detail and it is in good running condition.
A visit is possible after prior appointment.
The clamping unit and the injection unit of the machine are dismanteld for transport.
The closing unit has the following dimensions:
Length 5.20 m
Width 3.20 m
Height 2.45 m
Weight: 27000 kilograms
technical data clamping unit
| clamping force: | 7000 | kN |
| distance between tie-bars h x v: | 1190 x 1020 | mm |
| size of mould plates h x v: | 1550 x 1520 | mm |
| min. mould height: | 500 | mm |
| max. mould height: | 1230 | mm |
| max. open daylight: | 2300 | mm |
| opening stroke: | 1600 | mm |
| ejector stroke: | 300 | mm |
| ejector force: | 180 | kN |
| centering diameter of moving platen: | 250 | mm |
| centering diameter of fixed platen: | 250 | mm |
| weight of mould: | 13000 | kg |
technical data injection unit
| screw diameter: | 70 | mm |
| swept volume: | 1193 | ccm |
| injection pressure: | 1820 | bar |
| screw length: | 20 | l/d |
| screw speed: | 244 | min |
| plasticising rate: | 82 | g/s PS |
| injection rate into the open: | 366 | g/s PS |
| number of heating zones: | 7 | |
| nozzle stroke: | 600 | mm |
measures & weight
| measures of machine l x w x h: | 9.4m x 3.2m x 2.4m | |
| total weight: | 37000KG | |
equipment included
technical data robot-system
| handling type: | Roboter | |
| manufacture: | Engel | |
| controller: | ERC 65/0-F, RC 200 | |
| year of construction: | 2007 | |
| handling weight: | 20 | kg |
| operation hours: | 54282 | h |
| X axis: | 1500 | mm |
| Y axis: | 2200 | mm |
| Z axis: | 3800 | mm |
| screen-text: | deutsch | |
| total weight: | 1500 | kg |
| robot overall dimensions: | 4,80 x 2,60 x 2,35 m | |
| : | 170 | kg |

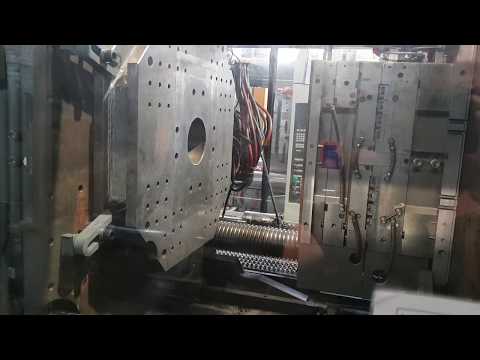

Videos
