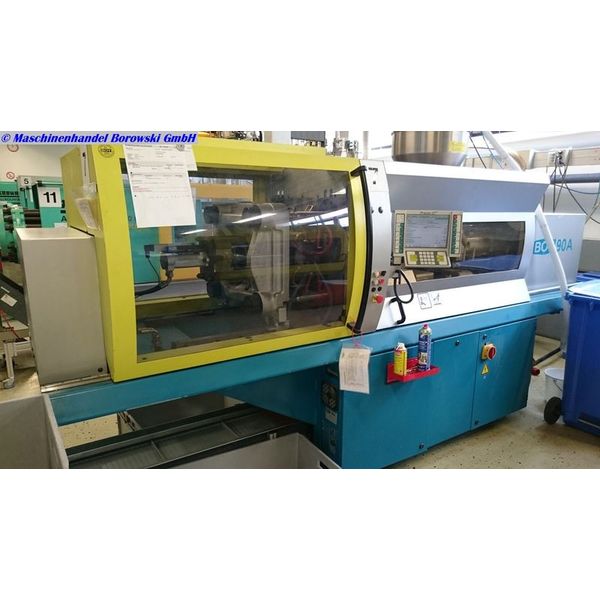

used injection moulding machine BOY BOY 90 A
| warehouse no.: | 502200 |
| manufacturer: | Dr. BOY |
| type: | BOY 90 A |
| controller: | |
| year of construction: | 2004 |
| operation hours: | 35631 h |
This used injection molding machine manufacturer of the manufacture Dr. Boy from city Neustadt-Fernthal in Germany was manufactured in year 2004. From then the machine has reliably produced plastic products and has been during its regular maintenance, so that the machine is in a good technical condition. The machine has got only 35,631 working hours.
The advantages are in its compact design, the two-platen clamping system and reliable technology. In addition the machine operates with the highest precession and enables easy automation during the manufacturing process.
The machine is available in our warehouse and will be checked in June/July 2016. We would be glad to show you this machine during a test-run (dry-cycle run).
The advantages are in its compact design, the two-platen clamping system and reliable technology. In addition the machine operates with the highest precession and enables easy automation during the manufacturing process.
The machine is available in our warehouse and will be checked in June/July 2016. We would be glad to show you this machine during a test-run (dry-cycle run).
technical data clamping unit
| clamping force: | 900 | kN |
| distance between tie-bars h x v: | 430 x 360 | mm |
| size of mould plates h x v: | 635 x 610 | mm |
| min. mould height: | 250 | mm |
| max. open daylight: | 725 | mm |
| opening stroke: | 475 | mm |
| ejector stroke: | 130 | mm |
| ejector force: | 20 | kN |
| centering diameter of moving platen: | 125 | mm |
| centering diameter of fixed platen: | 125 | mm |
| weight of mould: | 800 | kg |
technical data injection unit
| screw diameter: | 48 | mm |
| swept volume: | 262 | ccm |
| injection pressure: | 1320 | bar |
| screw length: | 17 | l/d |
| screw stroke: | 145 | mm |
| screw speed: | 310 | min |
| screw torque: | 735 | N |
| plasticising rate: | 45 | g/s PS |
| injection rate into the open: | 218 | g/s PS |
| number of heating zones: | 5 | |
| nozzle stroke: | 250 | mm |
measures & weight
| measures of machine l x w x h: | 3.85m x 1.33m x 2m | |
| total weight: | 3100KG | |
equipment included
Bei der Überprüfung wurde festgestellt, das die Schließkraft und somit die Schließseite in einem guten Zustand ist. Der Druckabfall ist sehr gering und somit in einem normalen Bereich und für die Produktion problemlos.
Die Sprache der Steuerung Procan CT kann standardmäßig zwischen Deutsch, Englisch, Französisch und Spanisch gewählt werden. Gegen Aufpreis sind weitere Sprachen verfügbar.
