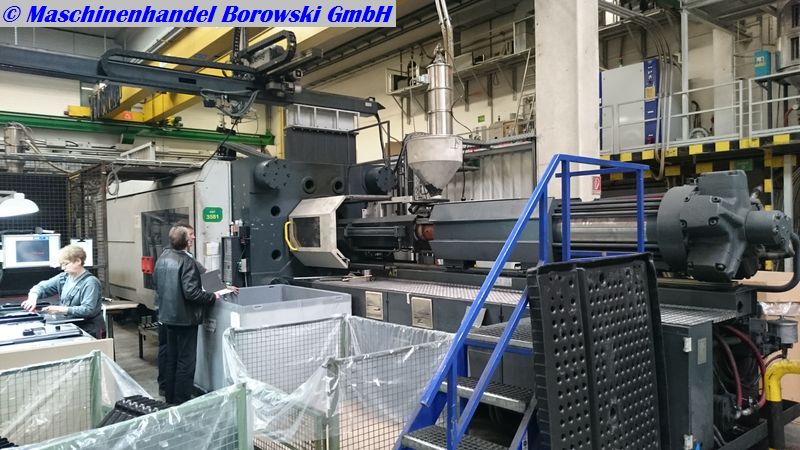

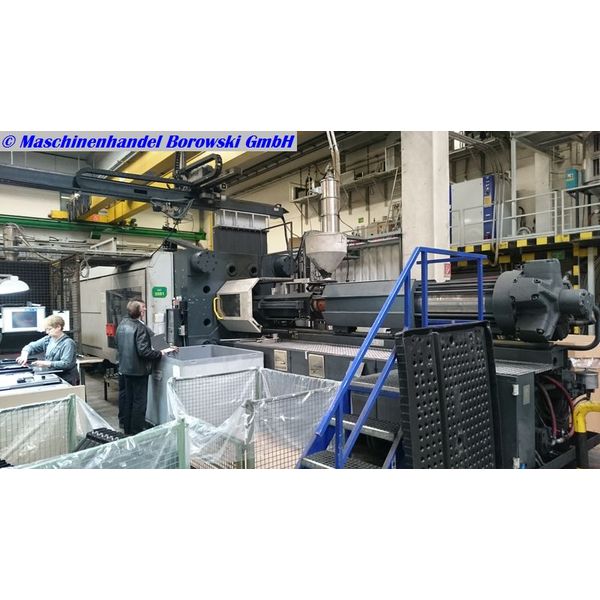

    used injection moulding machine DEMAG ET 13000-8000

    warehouse no.:502136
    manufacturer: DEMAG
    type:ERGOtech 13000-8000 NC 4
    controller:
    year of construction:1998
    operation hours:67751 h
    Maschine verkauft

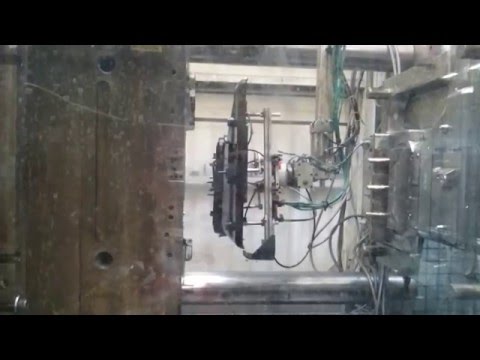

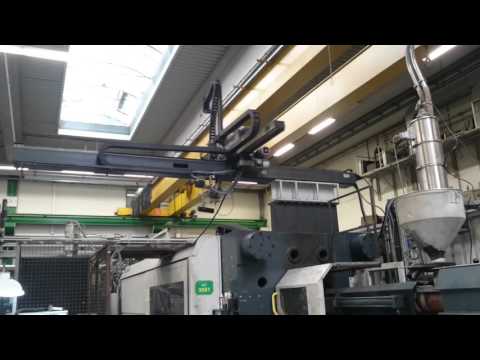

    In the short term we can supply you these secound hand machine for plastics processing. Currently the machine is producing diverse automotive. By mid-March, the machine is during this production and can be visited until the production stops. In addition to all machine functions the NC 4 control has connnected many peripherals for the injection molding machine. With the delivery is the Demag robot type DR 440. It communicates via the interface with NC 4 control unit. The axial lengths amount to X = 1200 mm, Y = 2200 mm and Z = 4000 mm.

    technical data clamping unit

    clamping force:13000kN
    distance between tie-bars h x v:1500 x 1250mm
    size of mould plates h x v:2150 x 1880mm
    min. mould height:700mm
    max. mould height: 1400mm
    max. open daylight:2900mm
    opening stroke:1500 mm
    ejector stroke:350mm
    centering diameter of moving platen:250mm
    centering diameter of fixed platen:250mm

    technical data injection unit

    screw diameter: 110mm
    swept volume: 4372ccm
    injection pressure: 1815bar
    screw length:20l/d
    plasticising rate:106 g/s PS
    injection rate into the open:680 g/s PS

    measures & weight

    measures of machine l x w x h: 14.1m x 3.2m x 2.7m
    total weight: 80000KG

    equipment included
