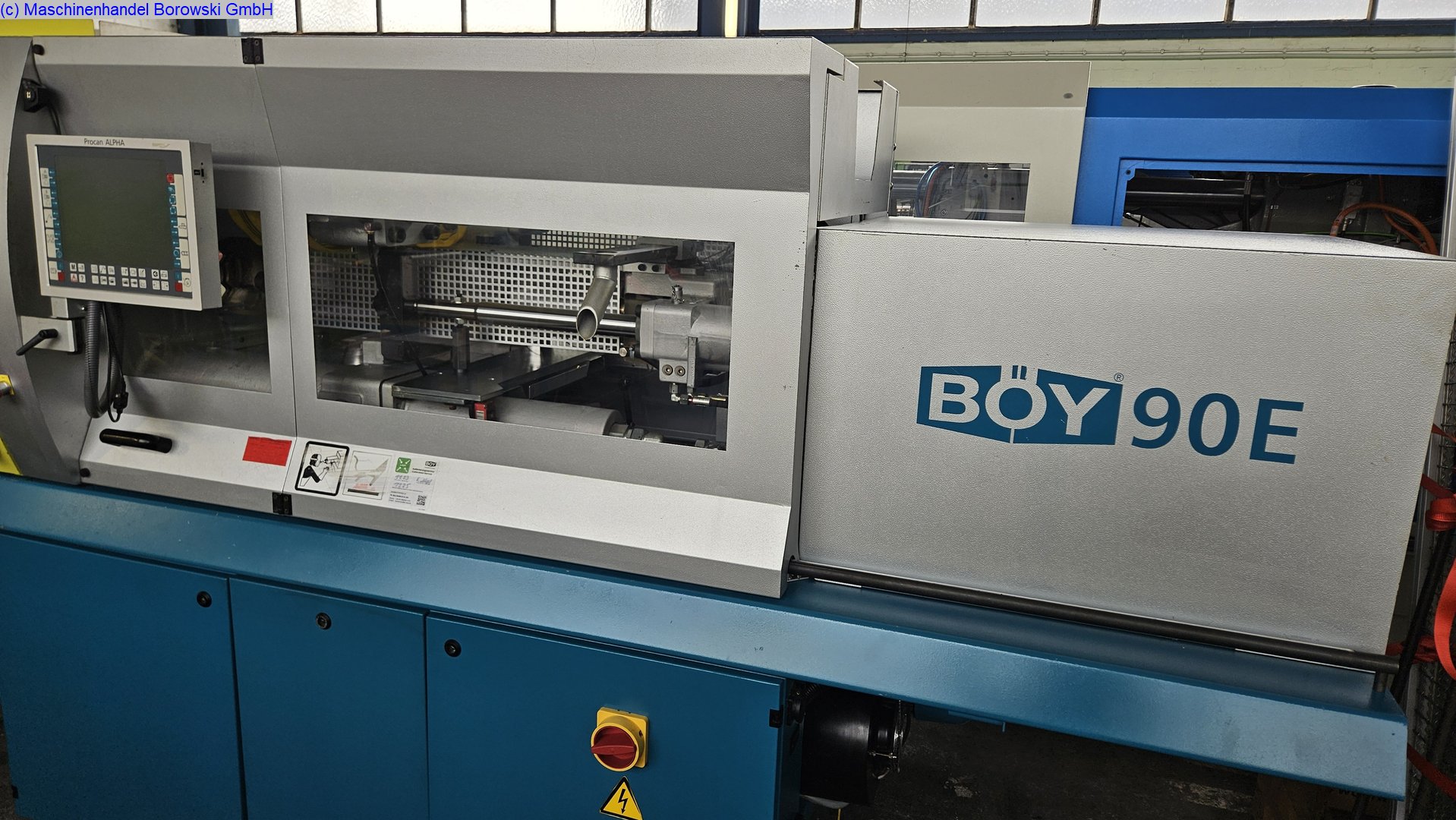

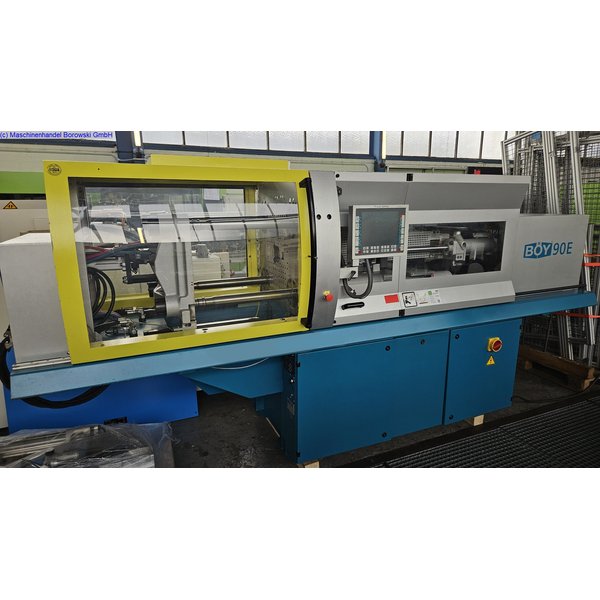

used injection moulding machine Dr. BOY 90 E
| warehouse no.: | 503452 |
| manufacturer: | BOY |
| type: | 90 E |
| controller: | Procan ALPHA |
| year of construction: | 2012 |
| operation hours: | 49130 h |
get offer by contact form
get offer by email
PDF downloadWelcome to our homepage featuring the Dr. Boy 90 E injection molding machine. This machine is equipped with Procan control and was manufactured in 2012, boasting approximately 49,000 operating hours.
The Dr. Boy 90 E delivers a clamping force of 900 kN and features a screw diameter of 42 mm, with a shot volume of 157.8 ccm. Its maximum injection pressure reaches 2347 bar. This machine has been thoroughly inspected and is in excellent used condition, offering reliability and precision for your production requirements.
Contact us today to learn more about this Dr. Boy 90 E injection molding machine and explore our range of quality pre-owned equipment.
technical data clamping unit
| clamping force: | 900 | kN |
| distance between tie-bars h x v: | 430 x 360 | mm |
| size of mould plates h x v: | 635 x 610 | mm |
| min. mould height: | 250 | mm |
| max. open daylight: | 725 | mm |
| opening stroke: | 475 | mm |
| ejector stroke: | 130 | mm |
| ejector force: | 20 | kN |
| centering diameter of moving platen: | 110 | mm |
| centering diameter of fixed platen: | 110 | mm |
| weight of mould: | 800 | kg |
technical data injection unit
| screw diameter: | 42 | mm |
| swept volume: | 214.7 | ccm |
| injection pressure: | 1724 | bar |
| screw length: | 20 | l/d |
| screw stroke: | 155 | mm |
| screw speed: | 280 | min |
| screw torque: | 700 | N |
| plasticising rate: | 136 | g/s PS |
| number of heating zones: | 4 | |
| nozzle stroke: | 250 | mm |
measures & weight
| measures of machine l x w x h: | 4.37m x 1.21m x 2.2m | |
| total weight: | 3730KG | |
equipment included
- screen text german
- core pulling hydraulically 1x
- machine without material hopper
- machine without water flow regulator
- Anti vibration mounts
- interface robot EUROMAP 67
- interface USB
