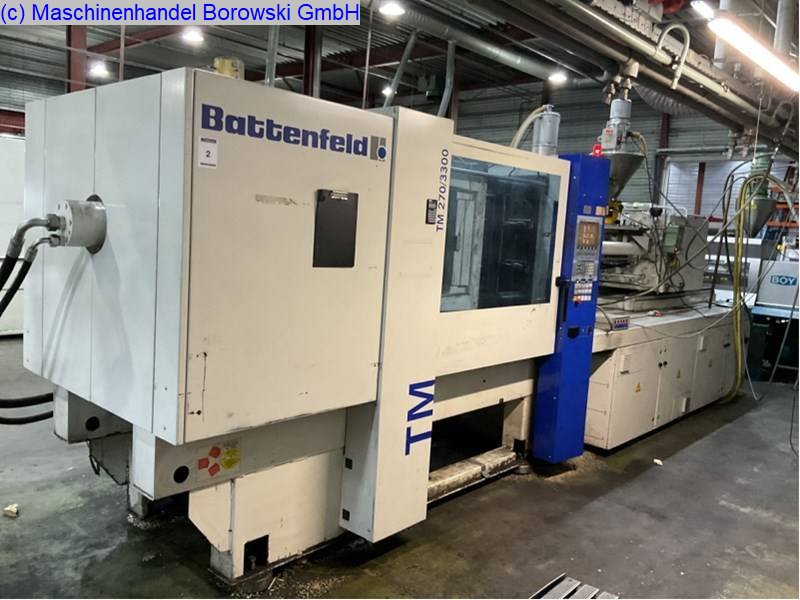

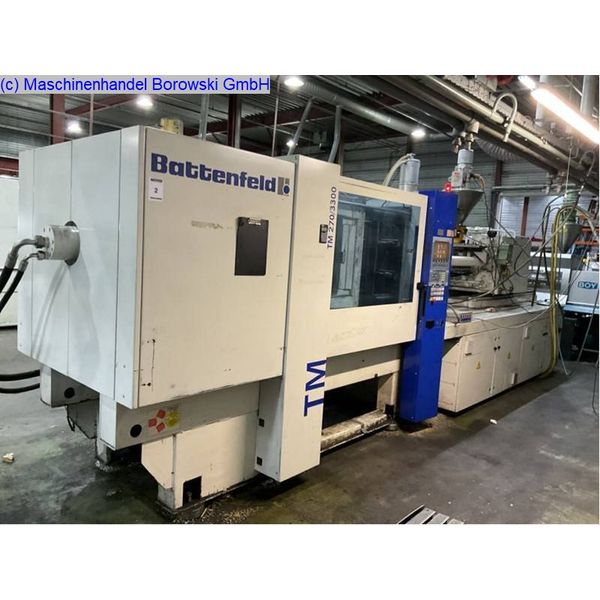

used injection moulding machine BATTENFELD TM 270-3300
| warehouse no.: | 503221 |
| manufacturer: | BATTENFELD |
| type: | TM 270-3300 |
| controller: | UNILOG B4 |
| year of construction: | 2007 |
| operation hours: | 54840 h |
get offer by contact form
get offer by email
PDF downloadThe BATTENFELD TM 270-3300 injection moulding machine from 2007 is being technically checked and repaired before sale. The injection moulding plasticizing is equipped with a 75 mm screw diameter and enables a maximum specific injection pressure of 2087 bar. The calculated swept volume of 1657 cm³ results in a maximum injection weight of 1508 g polystyrene (PS). The "Battenfeld TM" toggle lever system achieves a clamping force of 2700 kN (270 t). The min. mould installation height 250 mm / max. mould installation height 650 mm and the opening path 600 mm achieves a maximum clamping plate distance.
technical data clamping unit
| clamping force: | 2700 | kN |
| distance between tie-bars h x v: | 630 x 630 | mm |
| size of mould plates h x v: | 940 x 940 | mm |
| min. mould height: | 250 | mm |
| max. mould height: | 650 | mm |
| max. open daylight: | 1250 | mm |
| opening stroke: | 600 | mm |
| ejector stroke: | 200 | mm |
| ejector force: | 59 | kN |
| centering diameter of moving platen: | 160 | mm |
| centering diameter of fixed platen: | 160 | mm |
| weight of mould: | 3200 | kg |
technical data injection unit
| screw diameter: | 75 | mm |
| swept volume: | 1657 | ccm |
| injection pressure: | 2087 | bar |
| screw length: | 22 | l/d |
| screw stroke: | 375 | mm |
| screw speed: | 178 | min |
| screw torque: | 3759 | N |
| plasticising rate: | 76 | g/s PS |
| injection rate into the open: | 346 | g/s PS |
| number of heating zones: | 5 | |
| nozzle stroke: | 600 | mm |
measures & weight
| measures of machine l x w x h: | 7.35m x 1.8m x 2.4m | |
| total weight: | 16000KG | |
equipment included
- screen text dutch
- core pulling hydraulically 1x
- air valve 1x
- machine with material hopper
- machine incl. water flow regulator
- Machine without Handling
- machine without hopper loader
- Anti vibration mounts
- interface EUROMAP 67
- interface USB
