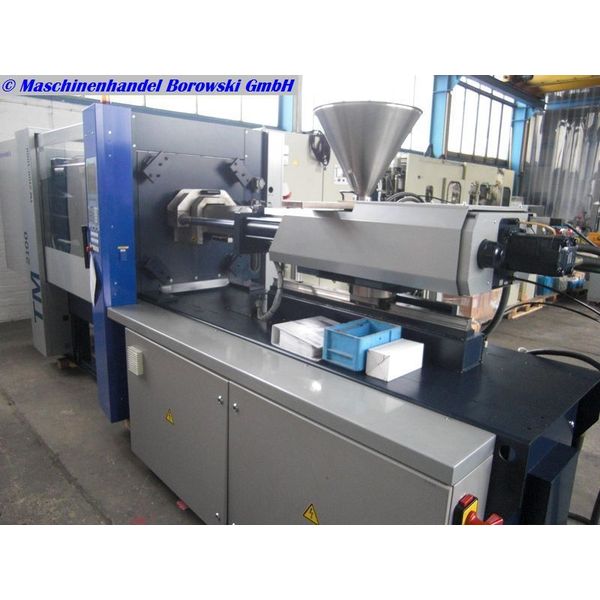

used injection moulding machine BATTENFELD TM 2100-1000 UNILOG B4, for sale
| warehouse no.: | 502113 |
| manufacturer: | BATTENFELD |
| type: | TM 2100-1000 UNILOG B4 |
| controller: | UNILOG B4 |
| year of construction: | 2003 |
| operation hours: | 17855 h |
This injection molding machine manufacturer Battenfeld (now Wittmann-Battenfeld) of the type TM 2100 - 1000 and the with operating control UNILOG B4, can be visit in our warehouse during dry-cyle run.
The TM-injection molding technology uses the toggle technology and has been proven for decades in practice. This series is particularly robust and is characterized by ist high reliability, the simple operation and maintenance.
The TM-injection molding technology uses the toggle technology and has been proven for decades in practice. This series is particularly robust and is characterized by ist high reliability, the simple operation and maintenance.
technical data clamping unit
| clamping force: | 2100 | kN |
| distance between tie-bars h x v: | 570 x 570 | mm |
| size of mould plates h x v: | 840 x 840 | mm |
| min. mould height: | 190 | mm |
| max. mould height: | 540 | mm |
| max. open daylight: | 1070 | mm |
| opening stroke: | 530 | mm |
| ejector stroke: | 180 | mm |
| ejector force: | 41 | kN |
| centering diameter of moving platen: | 160 | mm |
| centering diameter of fixed platen: | 160 | mm |
technical data injection unit
| screw diameter: | 50 | mm |
| swept volume: | 491 | ccm |
| injection pressure: | 2016 | bar |
| screw length: | 22 | l/d |
| screw stroke: | 250 | mm |
| screw speed: | 260 | min |
| screw torque: | 1540 | N |
| plasticising rate: | 39 | g/s PS |
| injection rate into the open: | 226 | g/s PS |
| number of heating zones: | 5 | |
| nozzle stroke: | 400 | mm |
measures & weight
| measures of machine l x w x h: | 5.58m x 1.64m x 2.25m | |
| total weight: | 8800KG | |
