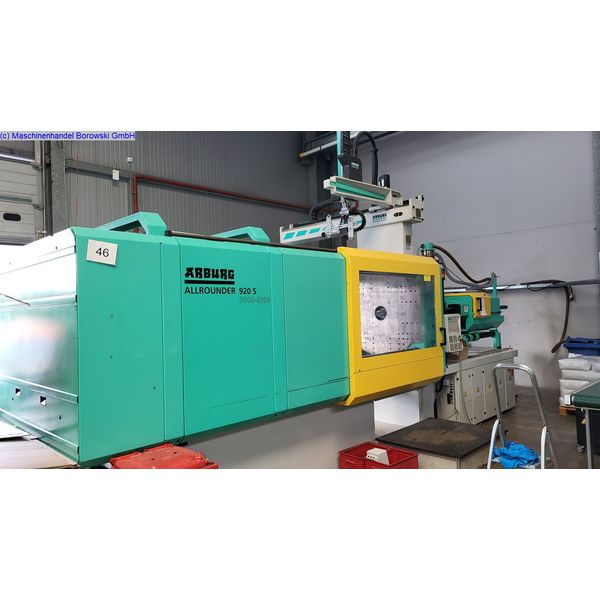

used injection moulding machine ARBURG Allrounder 920 S 5000-2100 - SOLD
| warehouse no.: | 503147 |
| manufacturer: | ARBURG |
| type: | Allrounder 920 S 5000-2100 |
| controller: | Selogica direct |
| year of construction: | 2011 |
| operation hours: | 25317 h |
For sale we offer you an injection molding machine that has an ARBURG Multilift, a conveyor belt and a protective housing. The loading and the two trucks and the preparation for dispatch is carried out by our specialist fitters in cooperation with a local mobile crane provider. Of course you can inspect our injection molding machine during operation under dry running conditions to get an idea of the machine technology and the condition. With only 25317 operating hours you get an injection molding machine with a very good price/performance ratio. We invite you for an in-depth inspection. Contact us and we will arrange an appointment.
technical data clamping unit
| clamping force: | 5000 | kN |
| distance between tie-bars h x v: | 920 x 920 | mm |
| size of mould plates h x v: | 1280 x 1280 | mm |
| min. mould height: | 400 | mm |
| max. mould height: | 1050 | mm |
| max. open daylight: | 1950 | mm |
| opening stroke: | 900 | mm |
| ejector stroke: | 250 | mm |
| ejector force: | 100 | kN |
| centering diameter of moving platen: | 200 | mm |
| centering diameter of fixed platen: | 200 | mm |
technical data injection unit
| screw diameter: | 70 | mm |
| swept volume: | 1078 | ccm |
| injection pressure: | 2000 | bar |
| screw length: | 20 | l/d |
| screw torque: | 2500 | N |
| injection rate into the open: | 394 | g/s PS |
measures & weight
| measures of machine l x w x h: | 8.5m x 3.1m x 2.34m | |
| total weight: | 26100KG | |
equipment included
technical data robot-system
| handling type: | Linear | |
| manufacture: | ARBURG | |
| controller: | MULTILIFT | |
| year of construction: | 2011 | |
| handling weight: | 15 | kg |
| X axis: | 700 | mm |
| Y axis: | 1400 | mm |
| Z axis: | 2000 | mm |
| B axis rotationn: | 180 | ° |
| C axis rotation: | 90 | ° |
| total weight: | 450 | kg |
