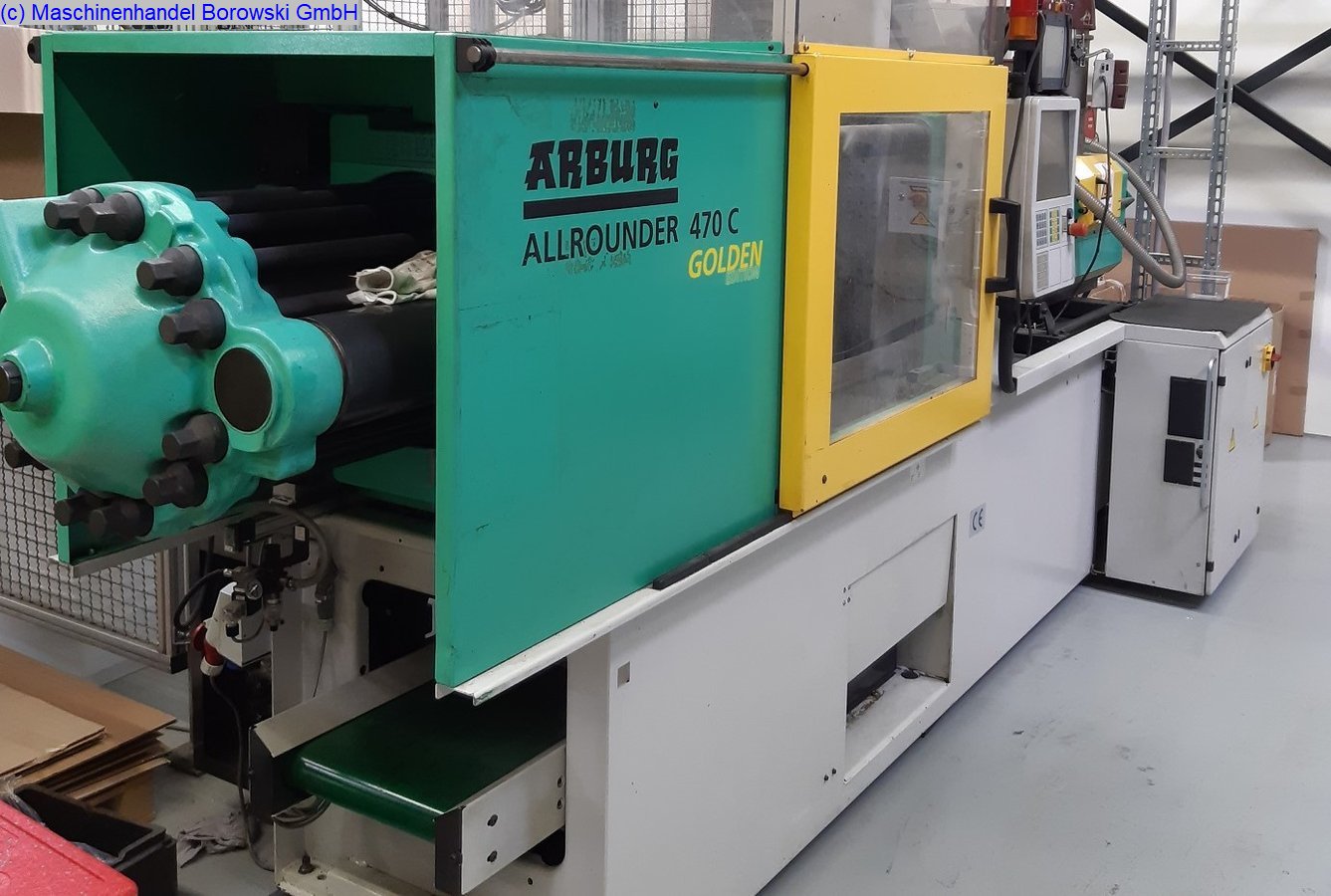

used injection moulding machine ARBURG Allrounder 470C 1500-400
| warehouse no.: | 503391 |
| manufacturer: | ARBURG |
| type: | Allrounder 470 C 1500-400 |
| controller: | Selogica |
| year of construction: | 2008 |
| operation hours: | 13847 h |
With just 13,847 operating hours, the ABRURG 470 C 1500-400 is in very good condition and is also available at short notice.
The screw cylinder diameter is 40 mm and achieves a calculated stroke volume of 201 cm³. The equipment includes two hydraulic core pulls and a robot handling interface according to EUROMAP 67.
The unit comes with Wittmann W711 handling, conveyor belt (4000mm x 1100mm x 1100mm), protective housing and Feedmax S3 conveyor. On our behalf, ARBURG Service has technically checked the basic functions and the main components, which means that we can offer you a technically good injection molding machine.
We hope to have aroused your interest and we look forward to hearing from you.
The screw cylinder diameter is 40 mm and achieves a calculated stroke volume of 201 cm³. The equipment includes two hydraulic core pulls and a robot handling interface according to EUROMAP 67.
The unit comes with Wittmann W711 handling, conveyor belt (4000mm x 1100mm x 1100mm), protective housing and Feedmax S3 conveyor. On our behalf, ARBURG Service has technically checked the basic functions and the main components, which means that we can offer you a technically good injection molding machine.
We hope to have aroused your interest and we look forward to hearing from you.
technical data clamping unit
| clamping force: | 1500 | kN |
| distance between tie-bars h x v: | 470 x 470 | mm |
| size of mould plates h x v: | 650 x 650 | mm |
| min. mould height: | 250 | mm |
| max. open daylight: | 750 | mm |
| opening stroke: | 500 | mm |
| ejector stroke: | 175 | mm |
| ejector force: | 40 | kN |
| centering diameter of moving platen: | 125 | mm |
| centering diameter of fixed platen: | 125 | mm |
| weight of mould: | 120 | kg |
technical data injection unit
| screw diameter: | 40 | mm |
| swept volume: | 201 | ccm |
| injection pressure: | 2000 | bar |
| screw length: | 20 | l/d |
| screw stroke: | 160 | mm |
| screw torque: | 550 | N |
| plasticising rate: | 8 | g/s PS |
| injection rate into the open: | 168 | g/s PS |
| number of heating zones: | 5 | |
| nozzle stroke: | 300 | mm |
measures & weight
| measures of machine l x w x h: | 4.6m x 1.53m x 1.9m | |
| total weight: | 4800KG | |
equipment included
technical data robot-system
| handling type: | Linear | |
| manufacture: | Wittmann | |
| controller: | W711 | |
| year of construction: | 2008 | |
| X axis: | 420 | mm |
| Y axis: | 1200 | mm |
| Z axis: | 2000 | mm |
| total weight: | 220 | kg |

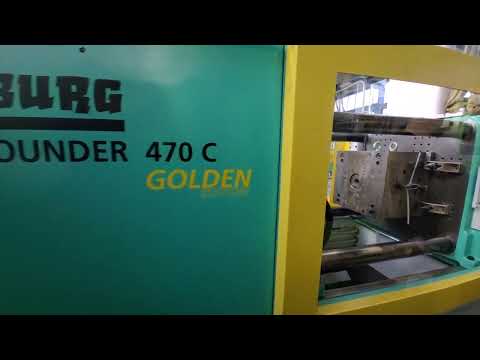

Videos
