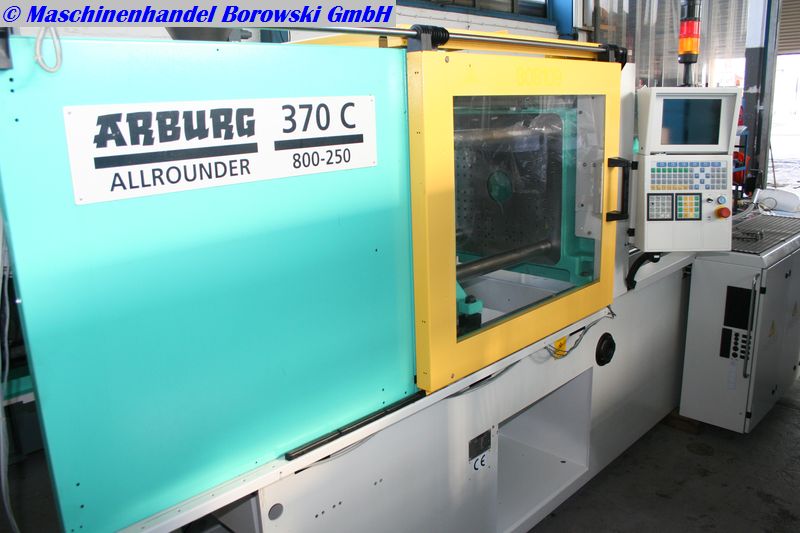

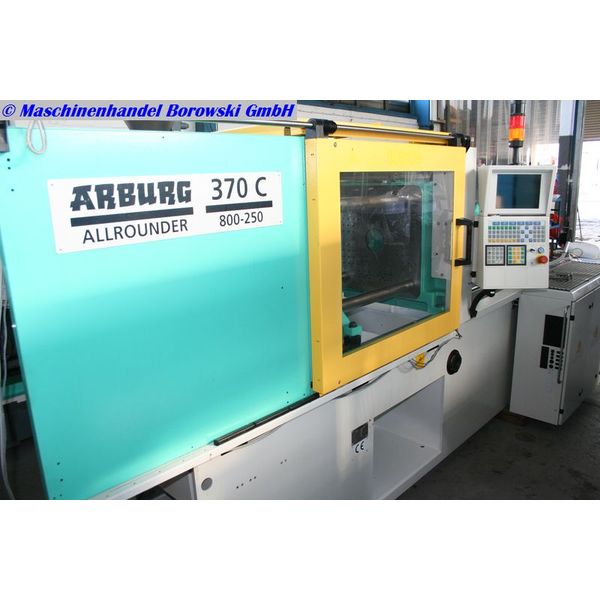

    used injection moulding machine ARBURG Allrounder 370C 800-250

    warehouse no.:502060
    manufacturer: ARBURG
    type:Allrounder 370C 800-250
    controller:
    year of construction:2000
    operation hours:41401 h
    Maschine verkauft
    This injection molding machine from manufacturer Arburg was built in 2000. It is already equipped with the SELOGICA controller. An optional accessory of the machine is the hydraulic core pull which operate to the hydraulic cylinder on injection molding tools. Optionally, the core pull can be controlled distance-dependent or time-dependent. Following delivery of this injection molding machine will be in late August. The checkup is carried out in our house. The machine is ready for sale in mid-September 2015 and we would be glad to show you this machine during a dry-cycle run.

    technical data clamping unit

    clamping force:800kN
    distance between tie-bars h x v:370 x 370mm
    size of mould plates h x v:570 x 570mm
    min. mould height:250mm
    max. open daylight:750mm
    opening stroke:500 mm
    ejector stroke:175mm
    ejector force:40kN
    centering diameter of moving platen:125mm
    centering diameter of fixed platen:125mm
    weight of mould:600kg

    technical data injection unit

    screw diameter: 35mm
    swept volume: 144ccm
    injection pressure: 1820bar
    screw length:22l/d
    screw stroke:150mm
    screw speed:57min
    screw torque:450 N
    plasticising rate:154 g/s PS
    number of heating zones:4
    nozzle stroke:240mm

    measures & weight

    measures of machine l x w x h: 4.35m x 1.55m x 2.1m
    total weight: 3180KG

    equipment included
