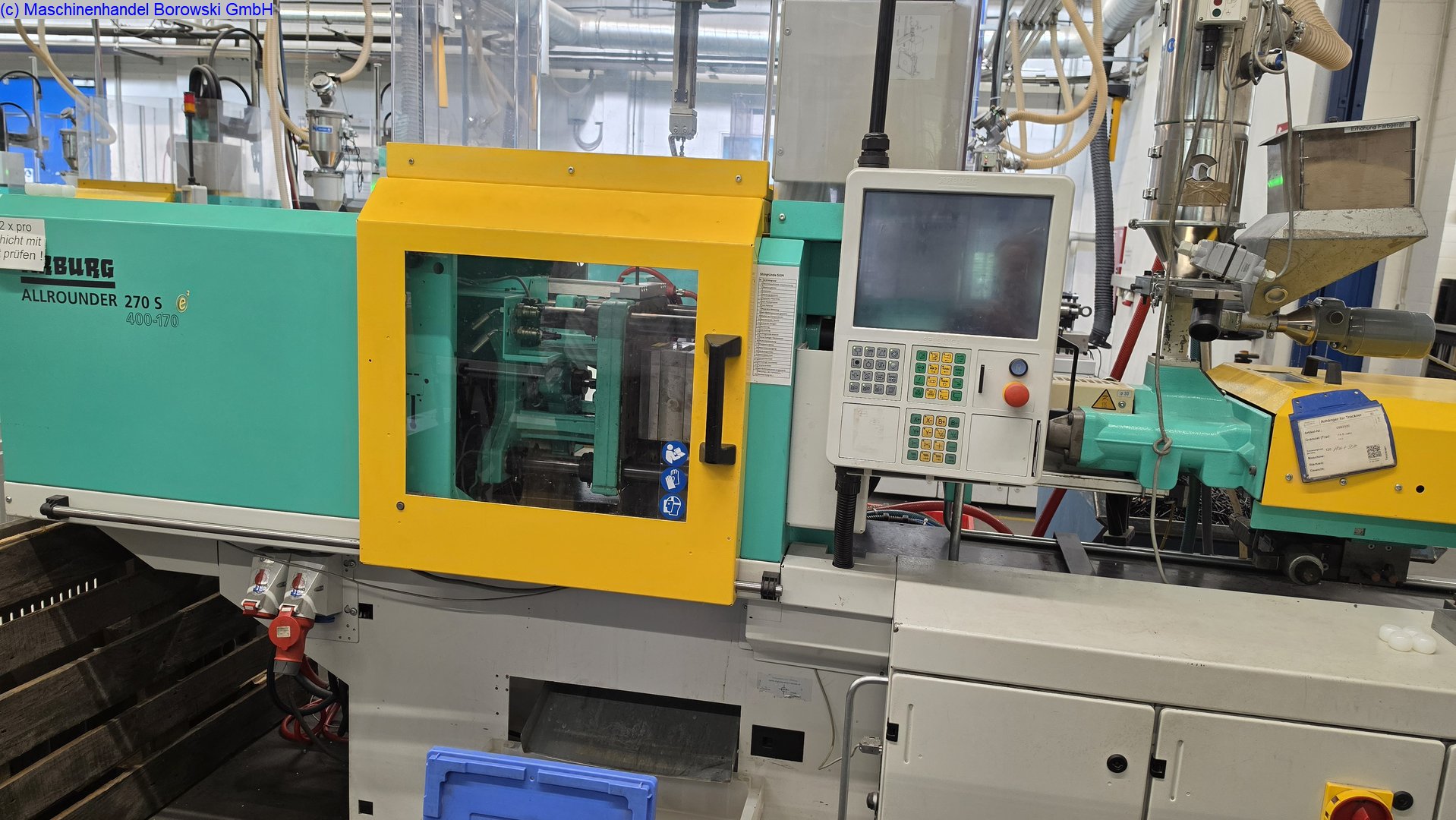

used injection moulding machine ARBURG Allrounder 270 S 400-170
| warehouse no.: | 503727 |
| manufacturer: | ARBURG |
| type: | Allrounder 270 S 400-170 |
| controller: | Selogica |
| year of construction: | 2015 |
| operation hours: | 54000 h |
get offer by contact form
get offer by email
PDF downloadtechnical data clamping unit
| clamping force: | 400 | kN |
| distance between tie-bars h x v: | 270 x 270 | mm |
| size of mould plates h x v: | 380 x 380 | mm |
| min. mould height: | 200 | mm |
| max. open daylight: | 550 | mm |
| opening stroke: | 350 | mm |
| ejector stroke: | 100 | mm |
| ejector force: | 20 | kN |
| weight of mould: | 200 | kg |
technical data injection unit
| screw diameter: | 30 | mm |
| swept volume: | 85 | ccm |
| injection pressure: | 2000 | bar |
| screw length: | 20 | l/d |
| screw stroke: | 120 | mm |
| screw torque: | 250 | N |
| injection rate into the open: | 96 | g/s PS |
| number of heating zones: | 5 | |
| nozzle stroke: | 210 | mm |
measures & weight
| measures of machine l x w x h: | 3.25m x 1.22m x 1.8m | |
| total weight: | 2330KG | |
equipment included
- incl. Spruepicker
- screen text german
- core pulling hydraulically 1x
- machine without hopper loader
- Anti vibration mounts
