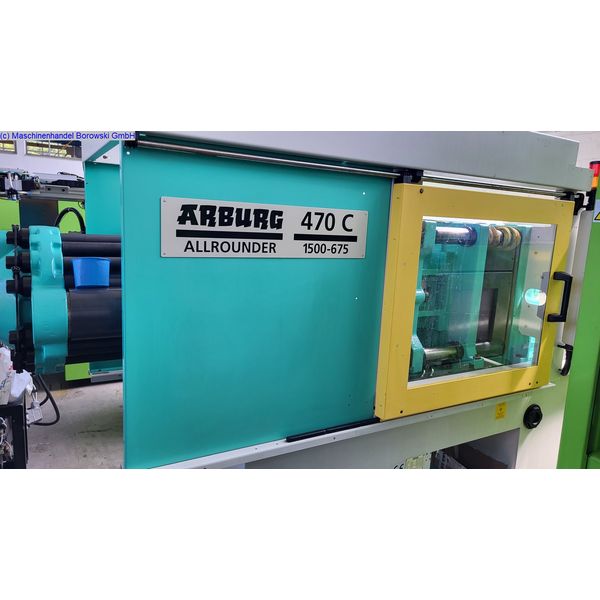

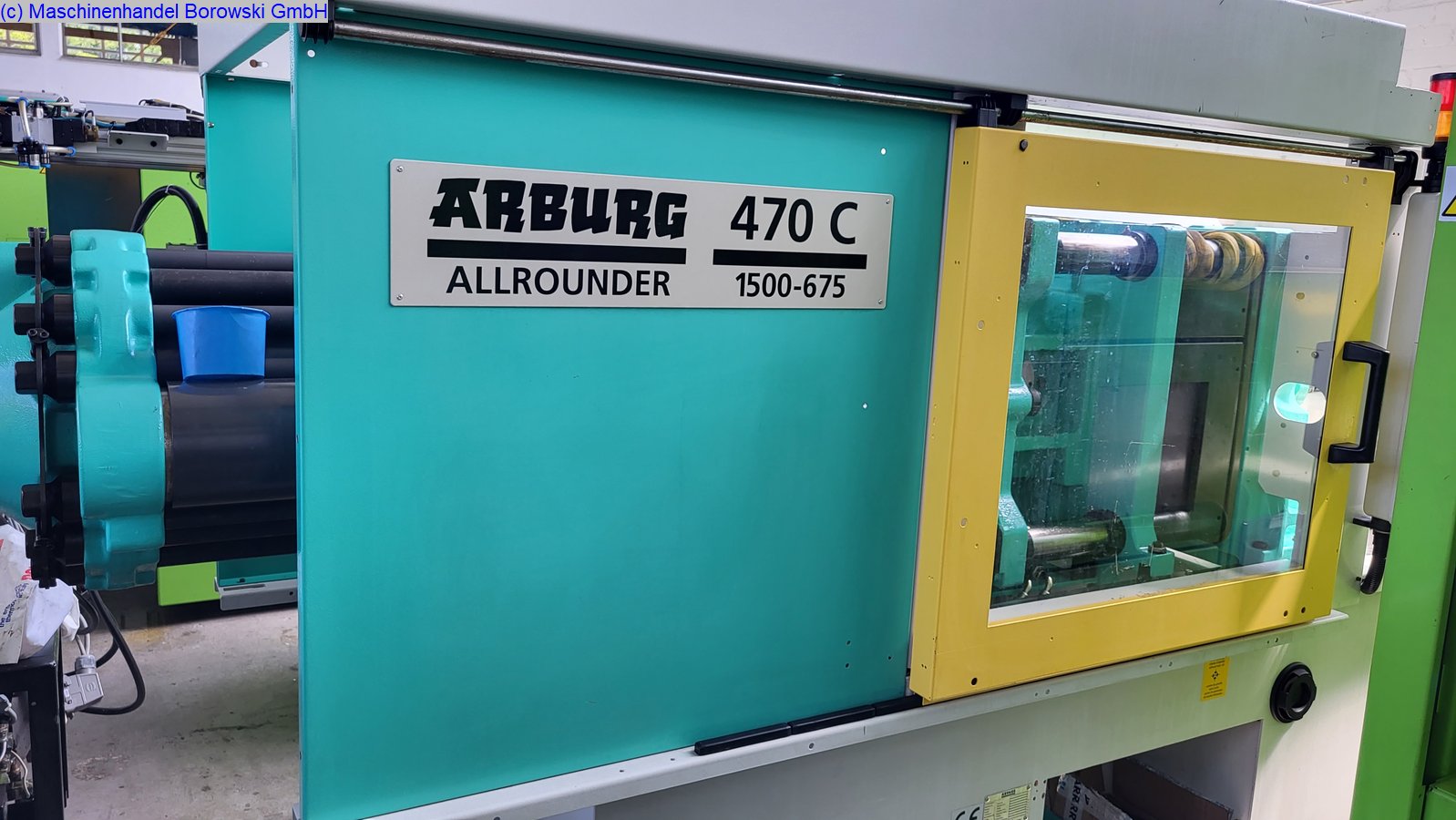

used injection moulding machine ARBURG Allr. 470 C 1500-675
| warehouse no.: | 503141 |
| manufacturer: | ARBURG |
| type: | Allrounder 470 C 1500-675 |
| controller: | Selogica |
| year of construction: | 2004 |
| operation hours: | 33500 h |
technical data clamping unit
| clamping force: | 1500 | kN |
| distance between tie-bars h x v: | 470 x 470 | mm |
| size of mould plates h x v: | 728 x 728 | mm |
| min. mould height: | 250 | mm |
| max. open daylight: | 900 | mm |
| opening stroke: | 650 | mm |
| ejector stroke: | 225 | mm |
| ejector force: | 66 | kN |
| centering diameter of moving platen: | 125 | mm |
| centering diameter of fixed platen: | 125 | mm |
technical data injection unit
| screw diameter: | 45 | mm |
| swept volume: | 286 | ccm |
| injection pressure: | 2500 | bar |
| screw length: | 22 | l/d |
| screw torque: | 880 | N |
| injection rate into the open: | 174 | g/s PS |
| nozzle stroke: | 400 | mm |
measures & weight
| measures of machine l x w x h: | 4.65m x 1.65m x 2.1m | |
| total weight: | 4660KG | |
equipment included
